| 操作 | 基础信息 | 基础尺寸 | 安装尺寸 | 轴肩尺寸 | 基本载荷 | 精度与游隙 | 重量与转速 | 品牌对照 | 装配参数 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PDF下载 | 询价 | 型号 | 系列 | 公称型号 | 内径 d (mm) |
外径 D (mm) |
高度 H/B (mm) |
H/B (mm) |
B1 (mm) |
dp (mm) |
滚子节圆直径 Dpw (mm) |
T (mm) |
H2 (mm) |
S (mm) |
C (mm) |
C1 (mm) |
d1 (mm) |
D1 (mm) |
D2 (mm) |
dn (mm) |
dm (mm) |
d2 (mm) |
d3 (mm) |
L1 (mm) |
L2 (mm) |
L3 (mm) |
倒角 rmin (mm) |
R 圆角半径 |
内圈 do (mm) |
内圈 ds (mm) |
内圈 Ts (mm) |
内圈安装孔尺寸 密封反面 |
内圈 安装孔尺寸 2 |
内圈 安装尺寸 |
内圈安装孔 中心径 PCD₁ |
内圈安装孔中心径 dn (mm) |
内圈安装孔中心径 dL (mm) |
内圈 安装孔尺寸 1 |
内圈安装孔尺寸 密封正面 |
内圈 N | 内圈 n-ΦN |
内圈 n-ΦQ3 |
外圈 安装尺寸 |
外圈安装孔 中心径 PCD₂ |
外圈安装孔中心径 dm (mm) |
外圈 安装孔尺寸 1 |
外圈安装孔尺寸 2 密封反面 |
外圈 W1 | 外圈 n-ΦW1 |
外圈 n-ΦQ1 |
外圈 W2 | 外圈 n-ΦW2 |
外圈 n-ΦQ2 |
外圈 dL (mm) |
轴肩尺寸 ds (mm) |
轴肩尺寸 Dh (mm) |
径向静载荷 Cor (N) |
径向动载荷 Cr (N) |
轴向静载荷 Coa (N) |
轴向动载荷 Ca (N) |
动载荷径向 (kg) |
动载荷轴向 (kg) |
极限负载 径向静载荷 (N) |
极限负载 径向动载荷 (N) |
推力 (N) |
力矩静载荷 (N·m) |
力矩动载荷 (N·m) |
力矩 (N·m) |
标准 径向游隙 |
内圈跳动 | 外圈跳动 | 重量 (g) |
重量 (KG) |
极限转速 脂润滑 (r/min) |
轴承摩擦 力矩 (Nm) |
NTN | INA | KAYDON | 内圈数量 | 外圈数量 | 联接 螺钉数量 |
吊装孔 G | 吊装孔数量 | 节距 t 数量×t |
螺钉拧紧力矩 MA (Nm) |
配套 减速器类型 |

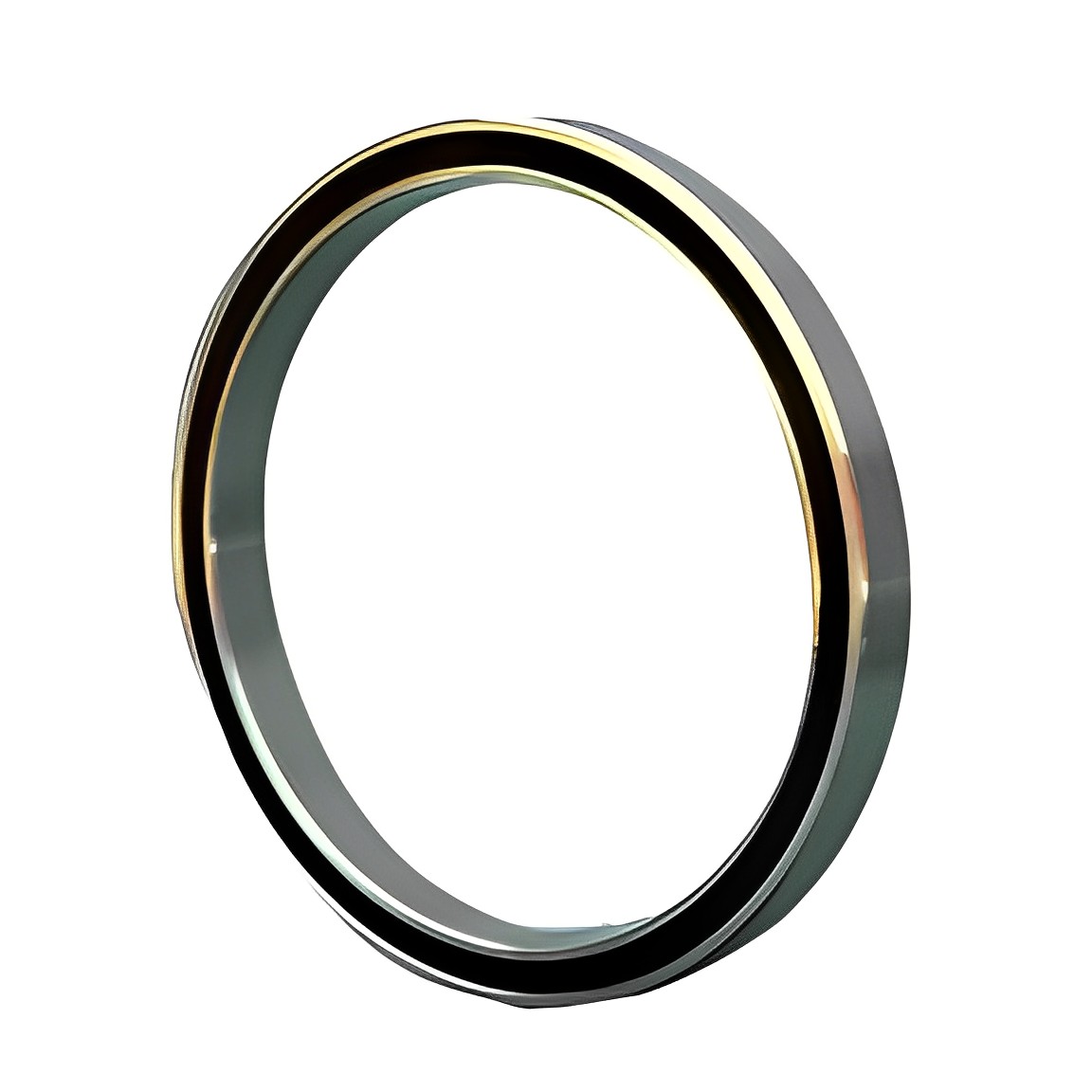

| PDF下载 | 询价 | K02508X | X型 | — | 25 | 41 | 8 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 334 | 331 | 758 | 469 | — | — | — | — | — | — | — | — | — | — | — | — | 0.06 | — | — | — | — | — | — | — | — | — | — | — | — | — |
| PDF下载 | 询价 | K05008X | X型 | — | 50 | 66 | 8 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 555 | 460 | 1389 | 666 | — | — | — | — | — | — | — | — | — | — | — | — | 0.08 | — | — | — | — | — | — | — | — | — | — | — | — | — |
| PDF下载 | 询价 | K06008X | X型 | — | 60 | 76 | 8 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 656 | 506 | 1641 | 745 | — | — | — | — | — | — | — | — | — | — | — | — | 0.09 | — | — | — | — | — | — | — | — | — | — | — | — | — |
| PDF下载 | 询价 | K07008X | X型 | — | 70 | 86 | 8 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 757 | 549 | 1894 | 819 | — | — | — | — | — | — | — | — | — | — | — | — | 0.1 | — | — | — | — | — | — | — | — | — | — | — | — | — |
| PDF下载 | 询价 | K08008X | X型 | — | 80 | 96 | 8 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 859 | 591 | 2146 | 890 | — | — | — | — | — | — | — | — | — | — | — | — | 0.11 | — | — | — | — | — | — | — | — | — | — | — | — | — |
| PDF下载 | 询价 | K09008X | X型 | — | 90 | 106 | 8 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 959 | 631 | 2399 | 959 | — | — | — | — | — | — | — | — | — | — | — | — | 0.13 | — | — | — | — | — | — | — | — | — | — | — | — | — |
| PDF下载 | 询价 | K10008X | X型 | — | 100 | 116 | 8 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 1060 | 670 | 2651 | 1025 | — | — | — | — | — | — | — | — | — | — | — | — | 0.14 | — | — | — | — | — | — | — | — | — | — | — | — | — |
| PDF下载 | 询价 | K11008X | X型 | — | 110 | 126 | 8 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 1162 | 707 | 2903 | 1090 | — | — | — | — | — | — | — | — | — | — | — | — | 0.15 | — | — | — | — | — | — | — | — | — | — | — | — | — |
| PDF下载 | 询价 | K12008X | X型 | — | 120 | 136 | 8 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 1262 | 743 | 3156 | 1152 | — | — | — | — | — | — | — | — | — | — | — | — | 0.16 | — | — | — | — | — | — | — | — | — | — | — | — | — |
| PDF下载 | 询价 | K13008X | X型 | — | 130 | 146 | 8 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 1363 | 778 | 3409 | 1212 | — | — | — | — | — | — | — | — | — | — | — | — | 0.18 | — | — | — | — | — | — | — | — | — | — | — | — | — |
| PDF下载 | 询价 | K14008X | X型 | — | 140 | 156 | 8 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 1465 | 812 | 3661 | 1271 | — | — | — | — | — | — | — | — | — | — | — | — | 0.19 | — | — | — | — | — | — | — | — | — | — | — | — | — |
| PDF下载 | 询价 | K15008X | X型 | — | 150 | 166 | 8 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 1565 | 546 | 3914 | 1329 | — | — | — | — | — | — | — | — | — | — | — | — | 0.2 | — | — | — | — | — | — | — | — | — | — | — | — | — |
| PDF下载 | 询价 | K16008X | X型 | — | 160 | 176 | 8 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 1666 | 878 | 4166 | 1386 | — | — | — | — | — | — | — | — | — | — | — | — | 0.2 | — | — | — | — | — | — | — | — | — | — | — | — | — |
| PDF下载 | 询价 | K17008X | X型 | — | 170 | 186 | 8 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 1767 | 910 | 4418 | 1441 | — | — | — | — | — | — | — | — | — | — | — | — | 0.2 | — | — | — | — | — | — | — | — | — | — | — | — | — |
| PDF下载 | 询价 | K02513X | X型 | — | 25 | 51 | 13 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 0.13 | — | — | — | — | — | — | — | — | — | — | — | — | — |
| PDF下载 | 询价 | K05013X | X型 | — | 50 | 76 | 13 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 0.2 | — | — | — | — | — | — | — | — | — | — | — | — | — |
| PDF下载 | 询价 | K06013X | X型 | — | 60 | 86 | 13 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 0.23 | — | — | — | — | — | — | — | — | — | — | — | — | — |
| PDF下载 | 询价 | K07013X | X型 | — | 70 | 96 | 13 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 0.26 | — | — | — | — | — | — | — | — | — | — | — | — | — |
| PDF下载 | 询价 | K08013X | X型 | — | 80 | 106 | 13 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 0.28 | — | — | — | — | — | — | — | — | — | — | — | — | — |
| PDF下载 | 询价 | K09013X | X型 | — | 90 | 116 | 13 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 0.31 | — | — | — | — | — | — | — | — | — | — | — | — | — |
