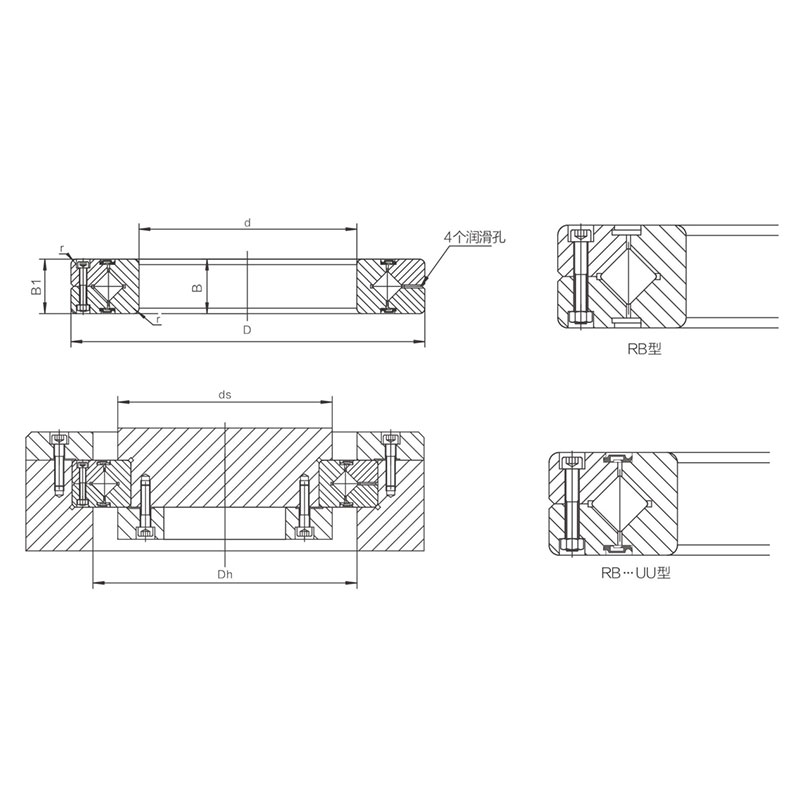

| 操作 | 基础信息 | 基础尺寸 | 安装尺寸 | 轴肩尺寸 | 基本载荷 | 精度与游隙 | 重量与转速 | 品牌对照 | 装配参数 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PDF下载 | 询价 | 型号 | 系列 | 公称型号 | 内径 d (mm) |
外径 D (mm) |
高度 H/B (mm) |
H/B (mm) |
B1 (mm) |
dp (mm) |
滚子节圆直径 Dpw (mm) |
T (mm) |
H2 (mm) |
S (mm) |
C (mm) |
C1 (mm) |
d1 (mm) |
D1 (mm) |
D2 (mm) |
dn (mm) |
dm (mm) |
d2 (mm) |
d3 (mm) |
L1 (mm) |
L2 (mm) |
L3 (mm) |
倒角 rmin (mm) |
R 圆角半径 |
内圈 do (mm) |
内圈 ds (mm) |
内圈 Ts (mm) |
内圈安装孔尺寸 密封反面 |
内圈 安装孔尺寸 2 |
内圈 安装尺寸 |
内圈安装孔 中心径 PCD₁ |
内圈安装孔中心径 dn (mm) |
内圈安装孔中心径 dL (mm) |
内圈 安装孔尺寸 1 |
内圈安装孔尺寸 密封正面 |
内圈 N | 内圈 n-ΦN |
内圈 n-ΦQ3 |
外圈 安装尺寸 |
外圈安装孔 中心径 PCD₂ |
外圈安装孔中心径 dm (mm) |
外圈 安装孔尺寸 1 |
外圈安装孔尺寸 2 密封反面 |
外圈 W1 | 外圈 n-ΦW1 |
外圈 n-ΦQ1 |
外圈 W2 | 外圈 n-ΦW2 |
外圈 n-ΦQ2 |
外圈 dL (mm) |
轴肩尺寸 ds (mm) |
轴肩尺寸 Dh (mm) |
径向静载荷 Cor (N) |
径向动载荷 Cr (N) |
轴向静载荷 Coa (N) |
轴向动载荷 Ca (N) |
动载荷径向 (kg) |
动载荷轴向 (kg) |
极限负载 径向静载荷 (N) |
极限负载 径向动载荷 (N) |
推力 (N) |
力矩静载荷 (N·m) |
力矩动载荷 (N·m) |
力矩 (N·m) |
标准 径向游隙 |
内圈跳动 | 外圈跳动 | 重量 (g) |
重量 (KG) |
极限转速 脂润滑 (r/min) |
轴承摩擦 力矩 (Nm) |
NTN | INA | KAYDON | 内圈数量 | 外圈数量 | 联接 螺钉数量 |
吊装孔 G | 吊装孔数量 | 节距 t 数量×t |
螺钉拧紧力矩 MA (Nm) |
配套 减速器类型 |

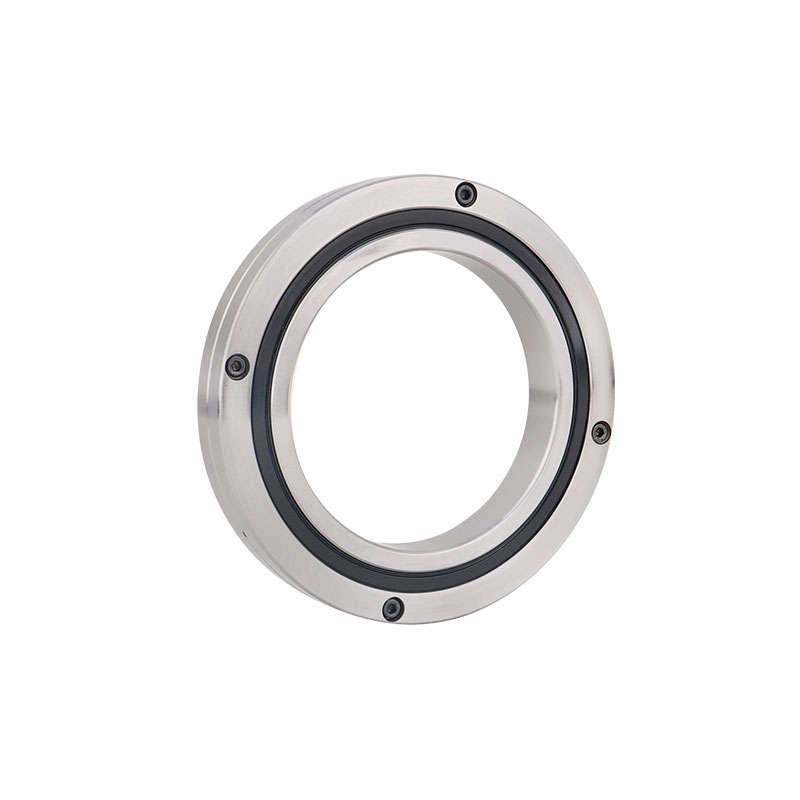

| PDF下载 | 询价 | RB 2008 | — | — | 20 | 36 | 8 | — | — | — | 27 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 0.5 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 23.5 | 30.5 | 3.1 | 3.23 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 0.04 | — | — | — | — | — | — | — | — | — | — | — | — | — |
| PDF下载 | 询价 | RB 2508 | — | — | 25 | 41 | 8 | — | — | — | 32 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 0.5 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 28.5 | 35.5 | 3.83 | 3.63 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 0.05 | — | — | — | — | — | — | — | — | — | — | — | — | — |
| PDF下载 | 询价 | RB 3010 | — | — | 30 | 55 | 10 | — | — | — | 41.5 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 0.6 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 37 | 47 | 8.36 | 7.35 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 0.12 | — | — | — | — | — | — | — | — | — | — | — | — | — |
| PDF下载 | 询价 | RB 3510 | — | — | 35 | 60 | 10 | — | — | — | 46.5 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 0.6 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 41 | 51.5 | 9.12 | 7.64 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 0.13 | — | — | — | — | — | — | — | — | — | — | — | — | — |
| PDF下载 | 询价 | RB 4010 | — | — | 40 | 65 | 10 | — | — | — | 51.5 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 0.6 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 47.5 | 57.5 | 10.6 | 8.33 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 0.16 | — | — | — | — | — | — | — | — | — | — | — | — | — |
| PDF下载 | 询价 | RB 4510 | — | — | 45 | 70 | 10 | — | — | — | 56.5 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 0.6 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 51 | 61.5 | 11.3 | 8.62 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 0.17 | — | — | — | — | — | — | — | — | — | — | — | — | — |
| PDF下载 | 询价 | RB 5013 | — | — | 50 | 80 | 13 | — | — | — | 64 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 0.6 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 57.4 | 72 | 20.9 | 16.7 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 0.27 | — | — | — | — | — | — | — | — | — | — | — | — | — |
| PDF下载 | 询价 | RB 6013 | — | — | 60 | 90 | 13 | — | — | — | 74 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 0.6 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 68 | 82 | 24.3 | 18 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 0.3 | — | — | — | — | — | — | — | — | — | — | — | — | — |
| PDF下载 | 询价 | RB 7013 | — | — | 70 | 100 | 13 | — | — | — | 84 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 0.6 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 78 | 92 | 27.7 | 19.4 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 0.35 | — | — | — | — | — | — | — | — | — | — | — | — | — |
| PDF下载 | 询价 | RB 8016 | — | — | 80 | 120 | 16 | — | — | — | 98 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 0.6 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 91 | 111 | 42.1 | 30.1 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 0.7 | — | — | — | — | — | — | — | — | — | — | — | — | — |
| PDF下载 | 询价 | RB 9016 | — | — | 90 | 130 | 16 | — | — | — | 108 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 1 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 98 | 118 | 45.3 | 31.4 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 0.75 | — | — | — | — | — | — | — | — | — | — | — | — | — |
| PDF下载 | 询价 | RB 10016 | — | — | 100 | 140 | 16 | — | — | — | 119.3 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 1 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 109 | 129 | 48.6 | 31.7 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 0.83 | — | — | — | — | — | — | — | — | — | — | — | — | — |
| PDF下载 | 询价 | RB 10020 | — | — | 100 | 150 | 20 | — | — | — | 123 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 1 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 113 | 133 | 50.9 | 33.1 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 1.45 | — | — | — | — | — | — | — | — | — | — | — | — | — |
| PDF下载 | 询价 | RB 11012 | — | — | 110 | 135 | 12 | — | — | — | 121.8 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 0.6 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 117 | 127 | 24.1 | 12.5 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 0.4 | — | — | — | — | — | — | — | — | — | — | — | — | — |
| PDF下载 | 询价 | RB 11015 | — | — | 110 | 145 | 15 | — | — | — | 126.5 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 0.6 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 122 | 136 | 41.5 | 23.7 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 0.75 | — | — | — | — | — | — | — | — | — | — | — | — | — |
| PDF下载 | 询价 | RB 11020 | — | — | 110 | 160 | 20 | — | — | — | 133 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 1 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 120 | 143 | 54 | 34 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 1.56 | — | — | — | — | — | — | — | — | — | — | — | — | — |
| PDF下载 | 询价 | RB 12016 | — | — | 120 | 150 | 16 | — | — | — | 134.2 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 0.6 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 127 | 141 | 43.2 | 24.2 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 0.72 | — | — | — | — | — | — | — | — | — | — | — | — | — |
| PDF下载 | 询价 | RB 12025 | — | — | 120 | 180 | 25 | — | — | — | 148.7 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 1.5 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 133 | 164 | 100 | 66.9 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 2.62 | — | — | — | — | — | — | — | — | — | — | — | — | — |
| PDF下载 | 询价 | RB 13015 | — | — | 130 | 160 | 15 | — | — | — | 144.5 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 0.6 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 137 | 152 | 46.7 | 25 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 0.72 | — | — | — | — | — | — | — | — | — | — | — | — | — |
| PDF下载 | 询价 | RB 13025 | — | — | 130 | 190 | 25 | — | — | — | 158 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 1.5 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 143 | 174 | 107 | 69.5 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 2.82 | — | — | — | — | — | — | — | — | — | — | — | — | — |
